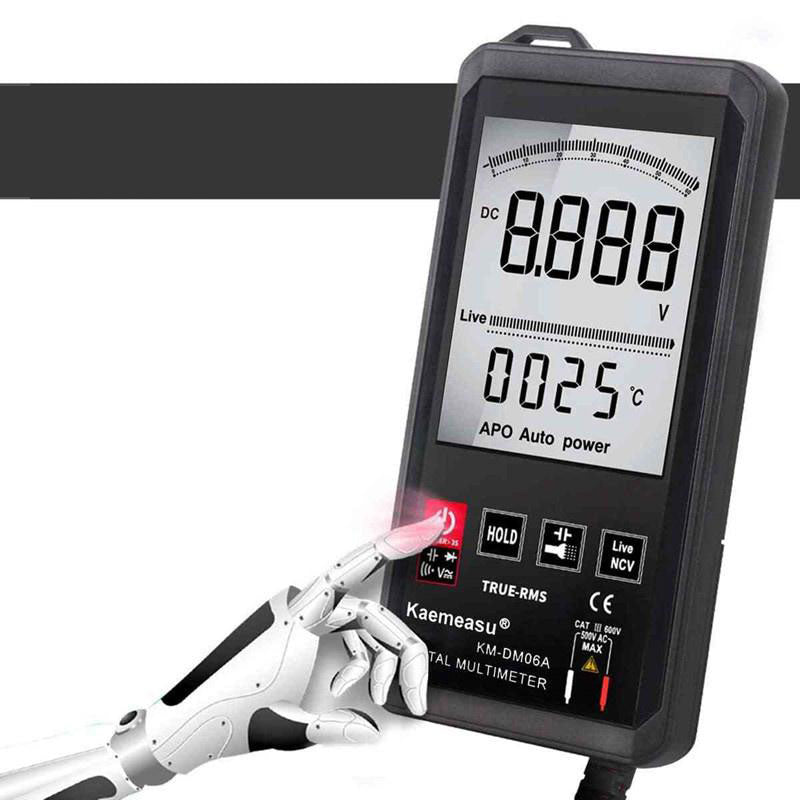

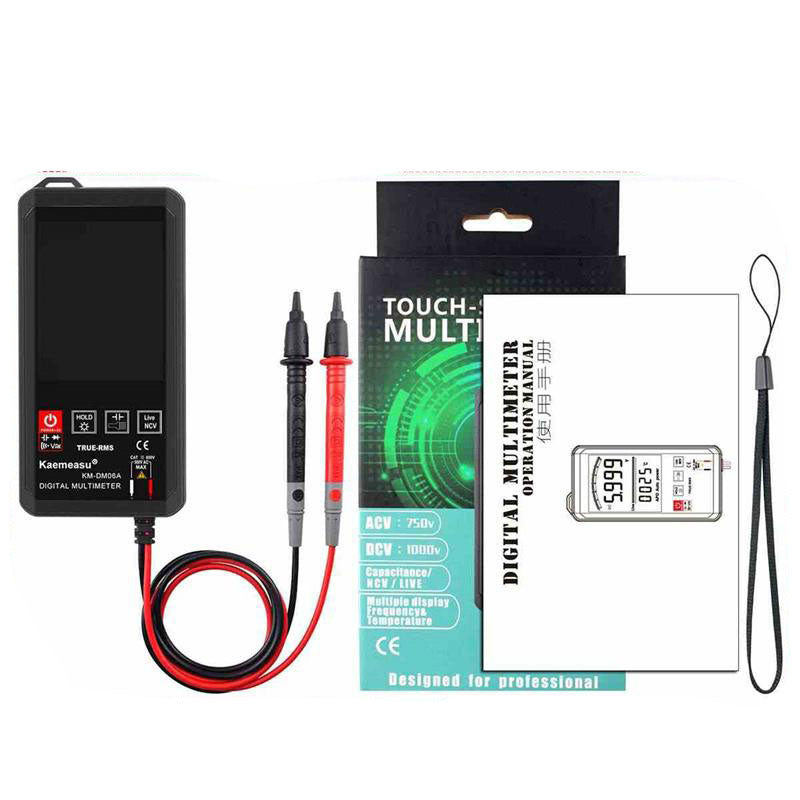

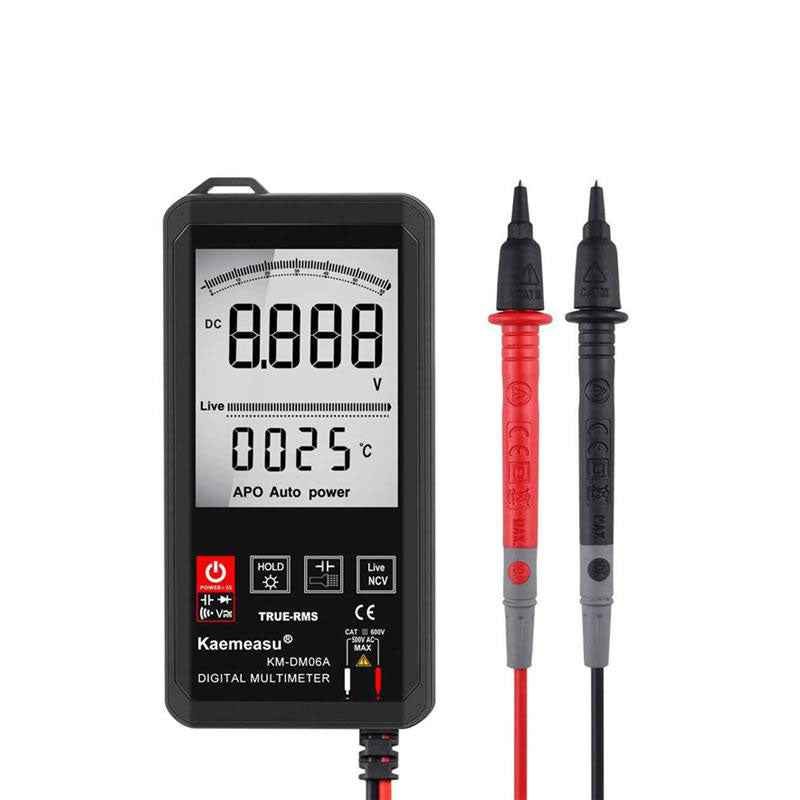

Kaemeasu NCV Handheld Touch Digital Multimeter 1000V DC Voltage Meter Large Screen Smart Mini Universal Meter Ultra-thin Pocket Electronic Repair Tool

€31,00

:In stock

: KM-DM06A

  • Cash on Delivery
  • Free Shipping 1-3 days
  • One Year Warranty

Introduction

6000 counts 1000V Multimeter is a pocket type 3 5 / 6-digit pocket type real effective value intelligent scanning digital instrument; the series is triple display: main display, secondary display, analog bar.During the measurement, the sub-display is normal temperature. In the process of using, users can operate continuously.

There is no need to turn the dial to select the function. The meter will automatically recognize and measure based on the input AC or DC current/resistance. It has stable performance, high precision, high reliability, clear reading and overload protection. Driven by AAA 1.5V battery, the instrument adopts large-screen LCD display and adopts a boost power supply.

Even at the edge of 2.3V low battery, it can ensure the high brightness of backlight and flashlight. The meter is easy to carry and is very popular among users.

This series of instruments can manually switch and measure DC voltage and AC voltage, capacitance, NDV, diode, continuity test, live wire judgment and true RMS. It is a superior tool and an ideal tool for laboratories, factories, radio enthusiasts and families.

General Characteristics

1-1. Display mode: triple display LCD; main display, sub display, analog bar;
1-2. Maximum display: 5999 (5 5/6) bit automatic polarity display;
1-3. Measurement method: double integral A/D conversion;
1-4. Sampling rate: about 3 times per second;
1-5. Over range display: The highest position shows “OL”;
1-6.Continuous power operation function;
1-7. Low voltage display;
1-8. Working environment:(0~40)℃,relative humidity<80%;
1-9. Power: AAA 2* 1.5V battery(Not included);
1-10. Volume (size): 139×68×18mm (L×W×H);
1-11. Weight:about 170g(including 1.5V battery).

Function

DC voltage DCV: 6V/60V/600V/1000V
AC voltage ACV: 6V/60V/600V/750V
Resistor: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Capacitor: 10nF/100nF/1uF/10uF/100uF/1mF/10mF/60mF
Diode /Continuity test: √
Touch key: √
Continuous power operation: √
NCV : √
Zero line / Fire line test: √
Full unit symbol: √
Backlight manual/Auto off: √
True RMS measurement: √
Temperature(℃/H): √
Flashlight lighting: √
Model: KM-DM06A
