UNI-T Digital Multimeter LED Tester 1000V Voltage Electricians Measurement Tools UT89 High Accuracy Handheld Mini Universal Meter For Electricians


:In stock

: UT89XD

  • Shop No.: SH16 RIGGA BUILDING Naif Dubai UAE
  • Style:

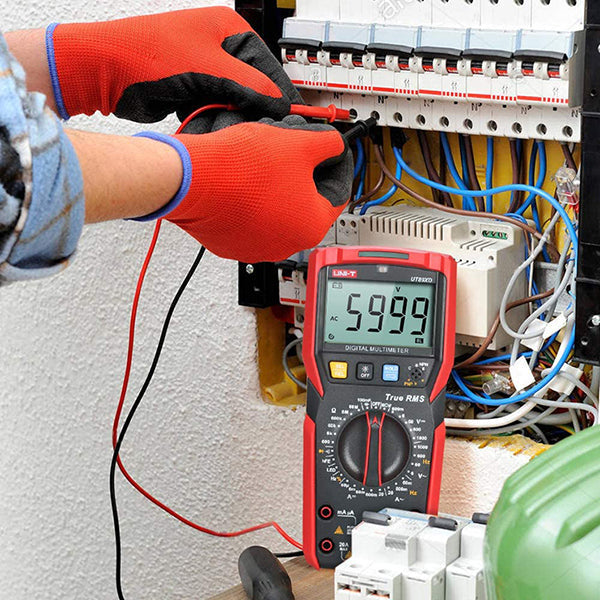

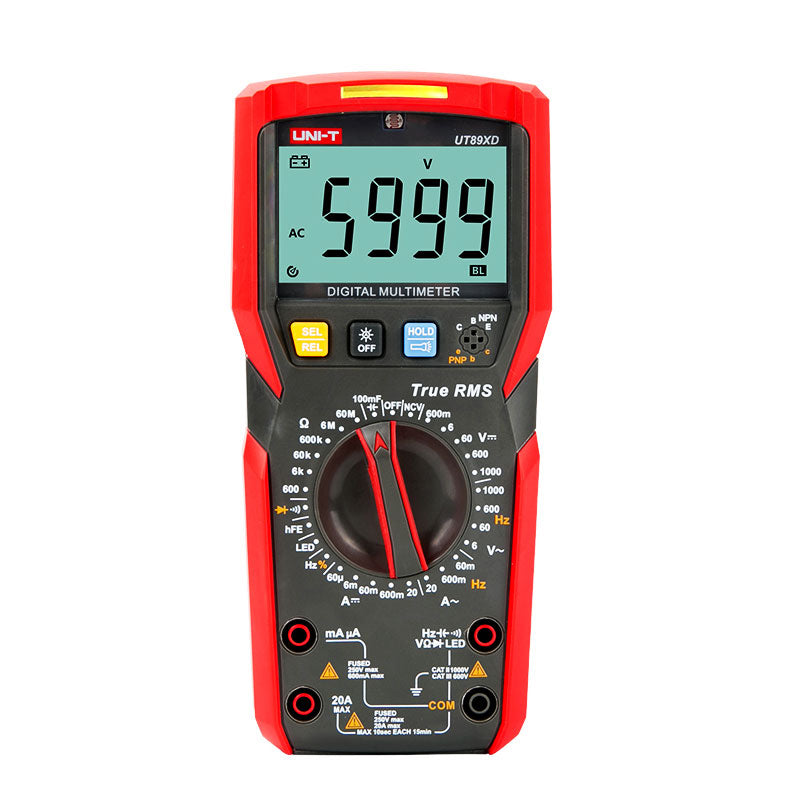

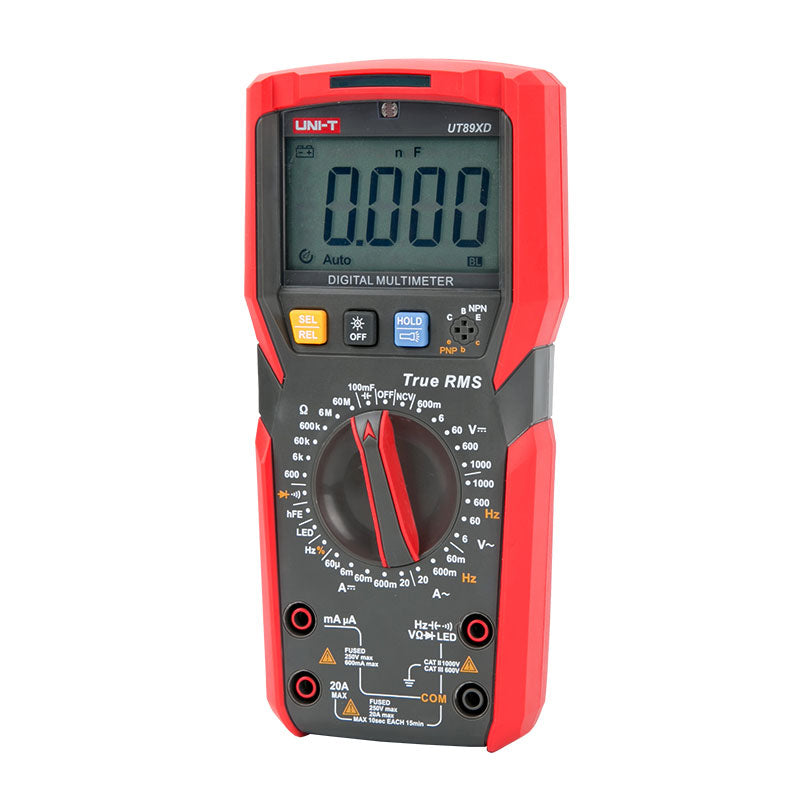

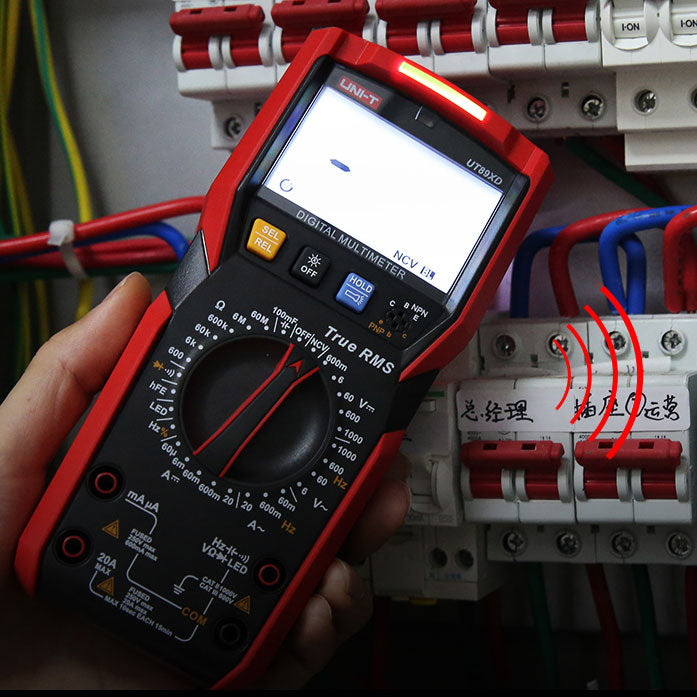

    UT89XD is a reliable hand-held 3 5/6 bit digital multimeter with true RMS sine wave measurement. It can measure Max. 1000V DC/AC voltage, Max. 20A DC/AC current, resistance, capacitance, frequency, diode, hFE, continuity and NCV, quickly distinguishing between neutral and live wires accurately. UT89XD can perform LED test. Equipped with audible and visible alarm, flashlight and auto backlight functions, this series can be used in dark environment. It attracts users with its bi-color durable case, modern exterior and multiple functions.

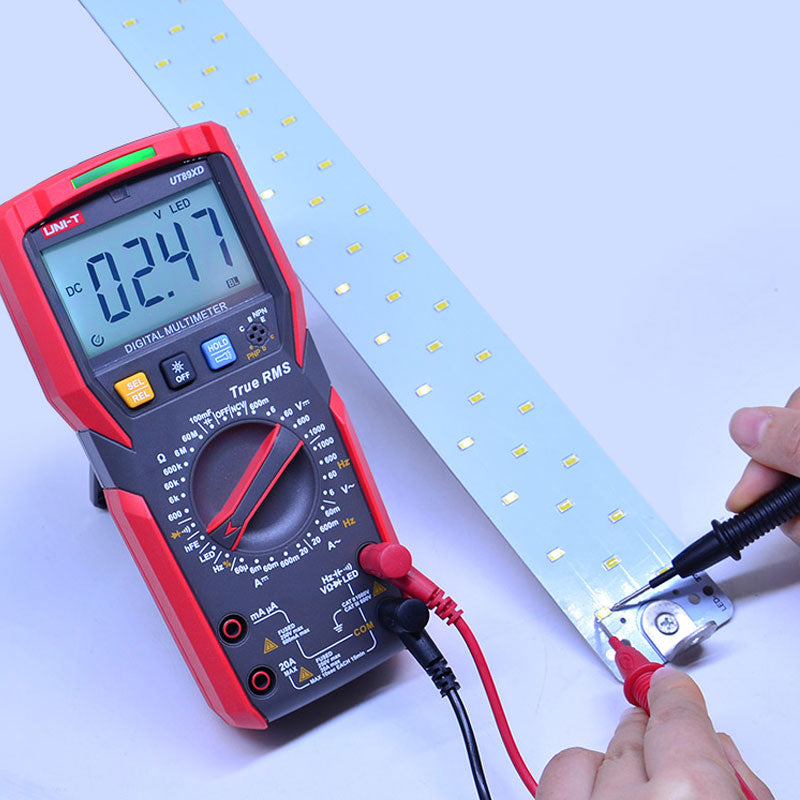

    • LED Test: function for checking LED performance, also with 12V/5mA voltage output.

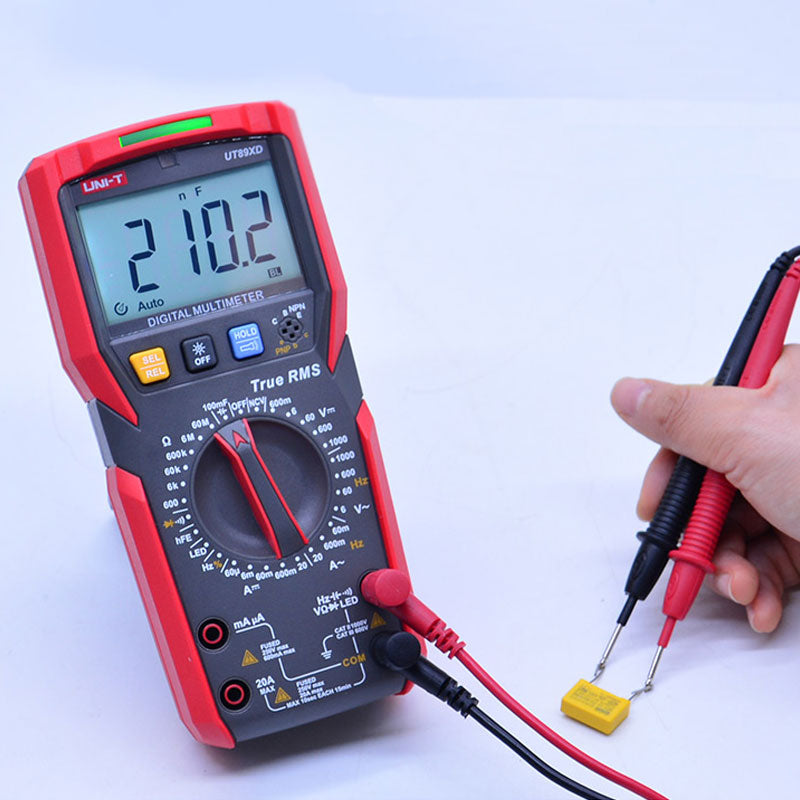

    • Practical Functions: for measuring DC/AC voltage, DC/AC current, Resistance, Capacitance, Frequency & Duty ratio, Diode & Triode, Live wire, and LED test.

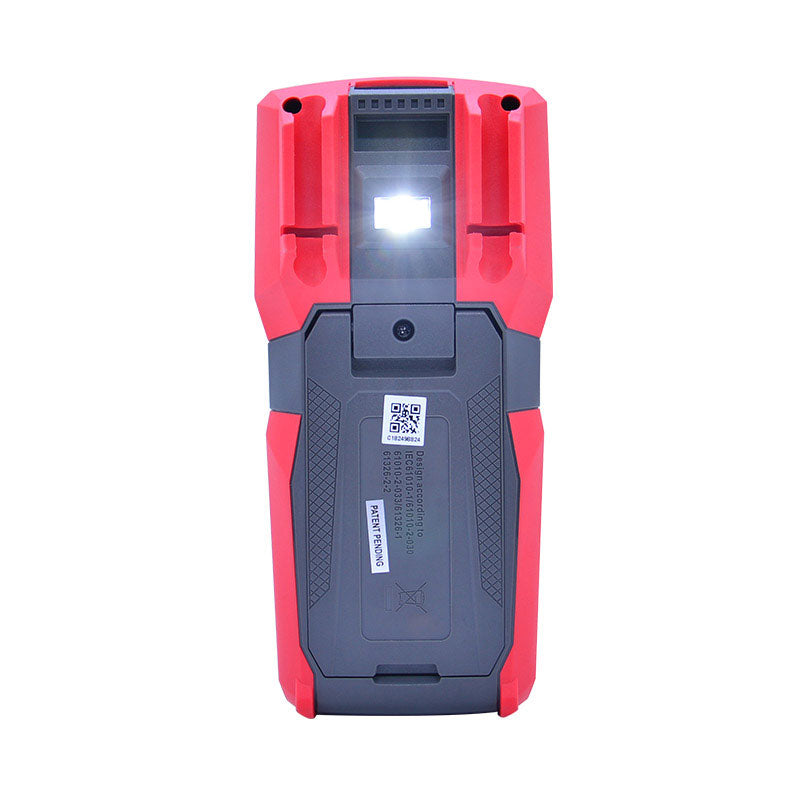

    • 2.8" Large LCD Display: 62*36mm LCD screen with large digital-readout and backlight for clear reading, and the flashlight for conveniently operating in dark environments.
    • Reliable Quality: the case was adopted with double color mould technology, which is more crash resistant and anti-shock than single color one, and comfort hand-held feeling.
    • Low Battery Indicator: remind you to replace battery to ensure measurement accuracy.


    Model Number: UT89XD

    Material: ABS+PC
    Display Type: Digital display
    Max. Display: 6000
    Range Control: Auto/Manual range
    Safety Level: CAT II 1000V, CAT III 600V
    Operating Temperature: 0~40℃ (32~104℉)
    Storage Temperature: -20~60℃ (-4~140℉)
    Relative Humidity: 0~30℃: ≤75%RH, 30-40℃: ≤50%RH
    Operating Altitude: 0~2000m
    DC Voltage Range: 600mV / 6V / 60V / 600V / 1000V
    AC Voltage Range: 6V / 60V / 600V / 1000V
    DC Current Range: 60μA / 6mA / 60mA / 600mA / 20A
    AC Current Range: 60mA / 600mA / 20A
    Resistance Range: 600Ω / 6KΩ / 60KΩ / 600KΩ / 6MΩ / 60MΩ
    Capacitance Range: 6nF / 60nF / 600nF / 6μF / 60μF / 600μF / 6mF / 60mF / 100mF
    Frequency Range: 9.999Hz~10MHZ
    Duty Ratio Range: 0.1%~99.9%
    LED Range: 11.1V
    Power Supply: 4 * 1.5V AAA battery (NOT included)
    Screen Size: 62 * 36mm / 2.44 * 1.42in
    Item Size: 186 * 87 * 52mm / 7.32 * 3.42 * 2.05in
    Item Weight: 396g / 13.98oz
    Package Weight: 515g / 18.19oz
    Package Size: 26 * 16 * 5.7cm / 10.24 * 6.30 * 2.64in

    Package List:

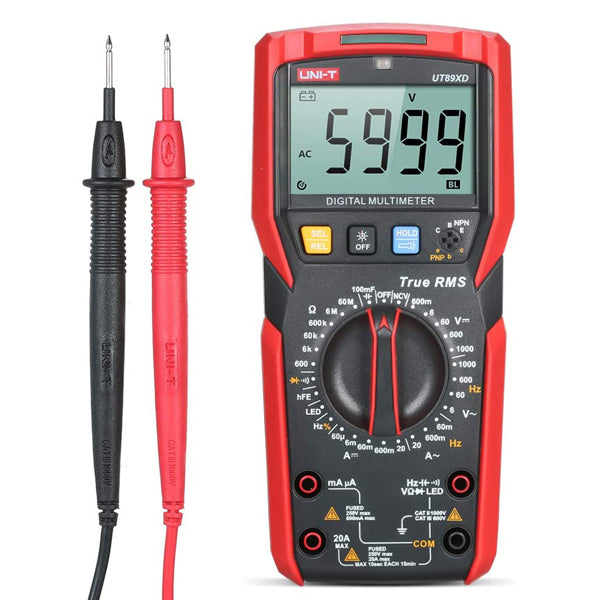

    1 * Digital Multimeter
    1 * Pair of Test Leads
    1 * User Manual
